❓ Frequently Asked Questions (FAQ)
Q1: What is the maximum torque capacity of the GM100F-555PM gear motor?
A1: The 100*60mm gearbox provides a high torque output of up to 5.0Nm, making it reliable for heavy-duty applications.
Q2: Can this motor be used in noise-sensitive applications?
A2: Yes, the motor is engineered with military product design requirements to ensure an ultra-low mute operation, suitable for low noise requirements.
Q3: Does the GM100F-555PM support feedback control?
A3: Yes, this DC gear motor can match with a built-in 11ppr encoder for precise position and speed tracking.

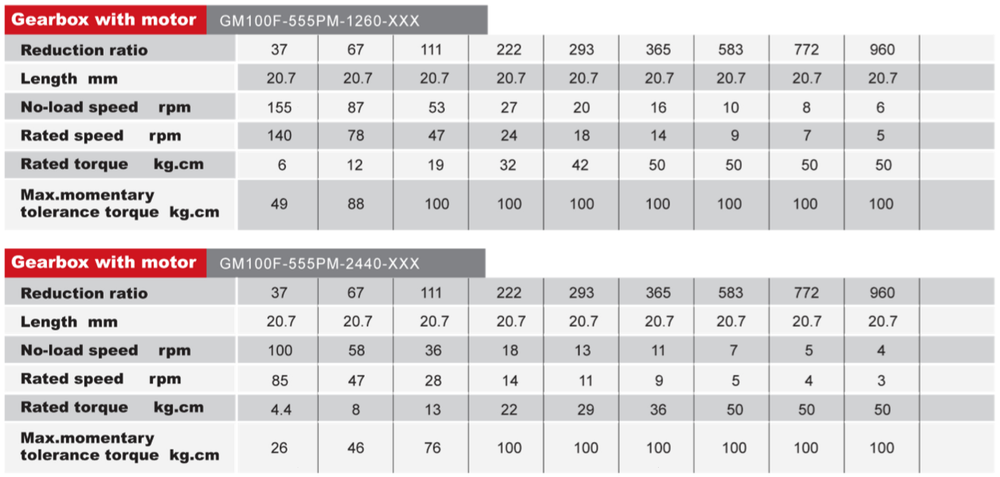

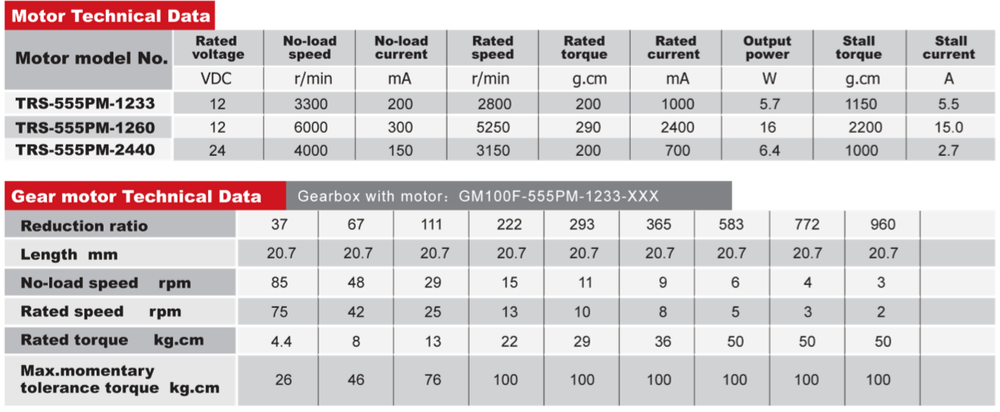

Q4: What reduction ratios are available for selection?
A4: The available reduction ratios include 37, 67, 111, 222, 293, 365, 583, 772, and 960 to meet diverse speed and torque settings.
Q5: What are the main applications of this eccentric out-shaft gearbox motor?
A5: It is widely applied in automobile accessories, paper feed systems, automatic actuators, electric locks, power locks, monitors, precision instruments, mini mechanisms, robots, and financial apparatus.

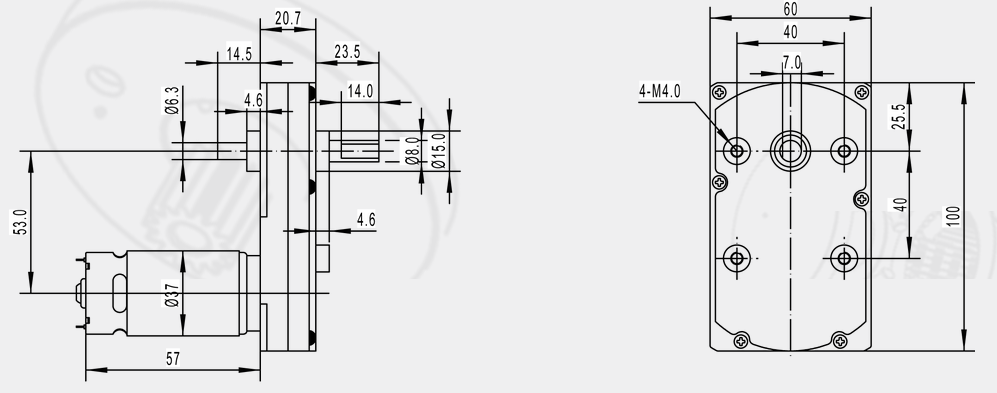

Q6: What is the overall physical size of the gearbox housing?

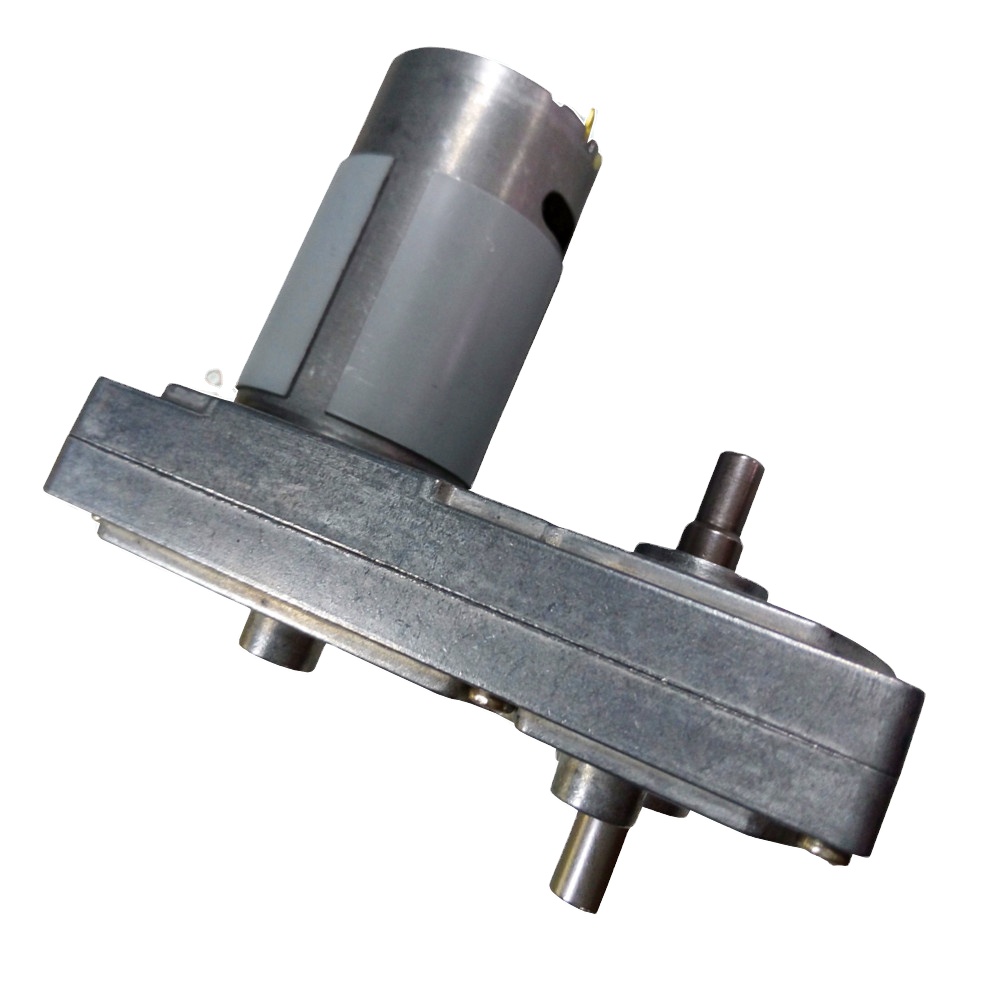

A6: The gearbox outer dimensions are 100mm by 60mm with an eccentric output shaft design.
