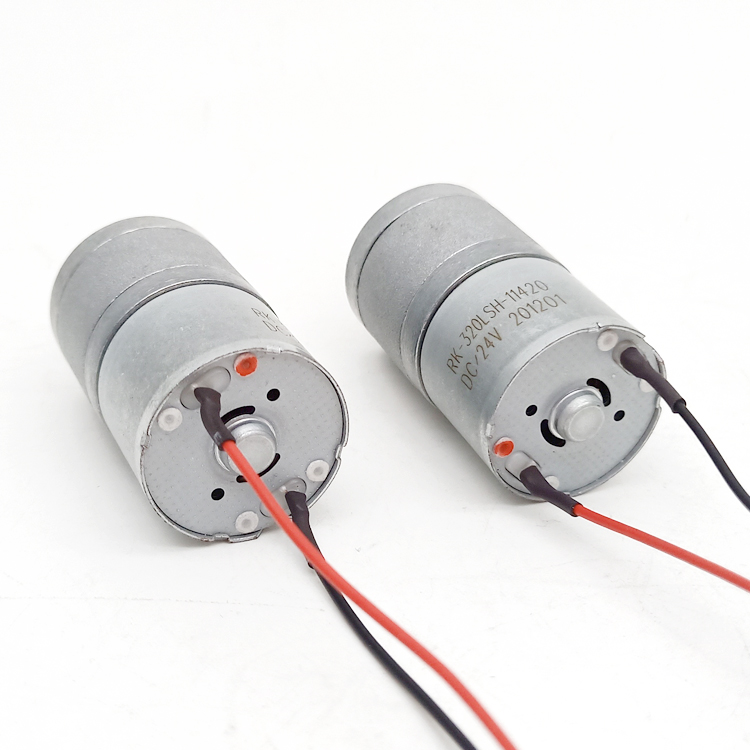

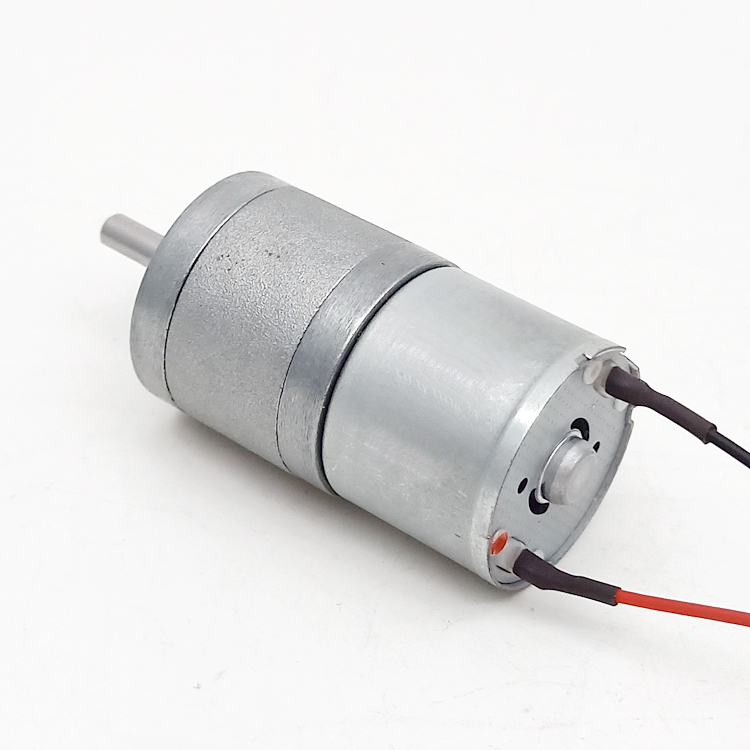

25mm Small Slow Rotating Motor for Light

Send Inquiry

Product Description

GM25-320CH

12v 25mm gear motor with very good performance

Widely used in Robot, Power Lock, Electronic Lock, Optic equipment, Micro Mechanism, money detector etc.
Voltage: 4-12V
Rated speed: 10-2000rpm
Rated torque: 0.03-2.5kg.cm
Life time: 1000H
Low noise, low current, no spark
Motor with encoder, 16 pulse signal
Reduction Ratio: 4,10,21,34,45,47,78,103,130,172,227,278,499
Size: 25*38 mm, just 38.0 mm length mini motor
Samples can be sent first, and the delivery time is 15 days
We can provide samples for your test
Rotating speed is constant and can be made as you required

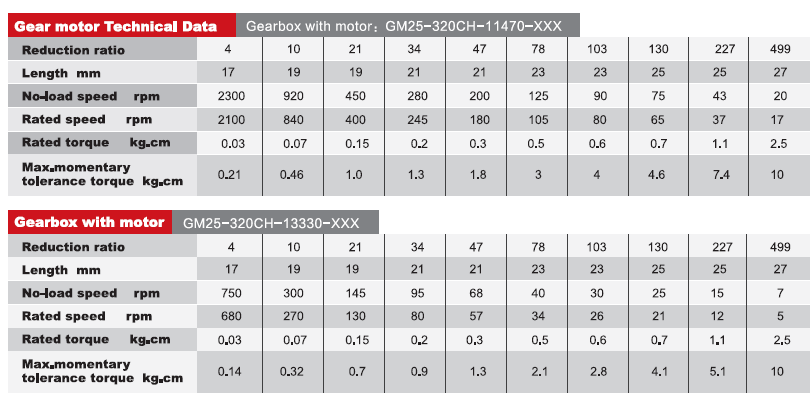

Parameters and Dimensions

Motor Specifications & Appearance

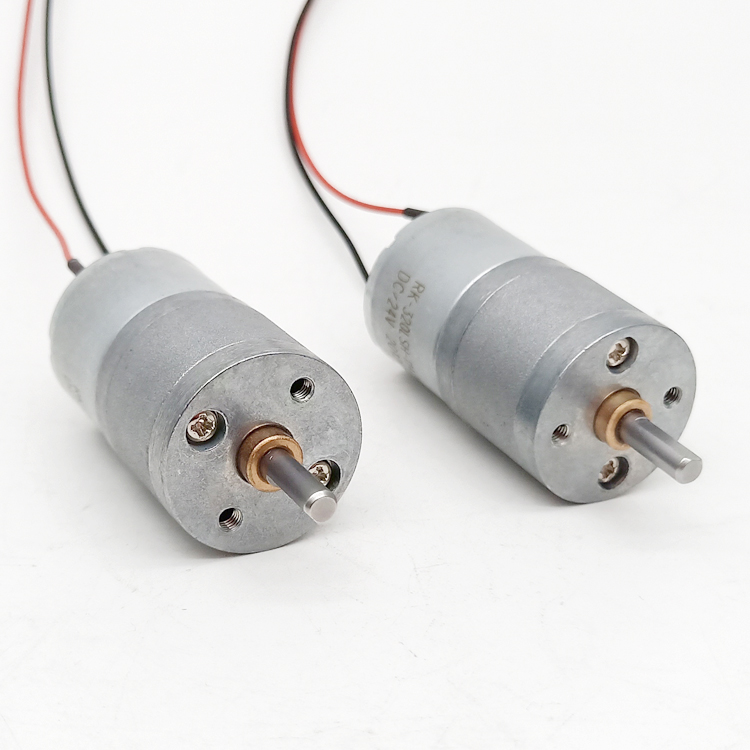

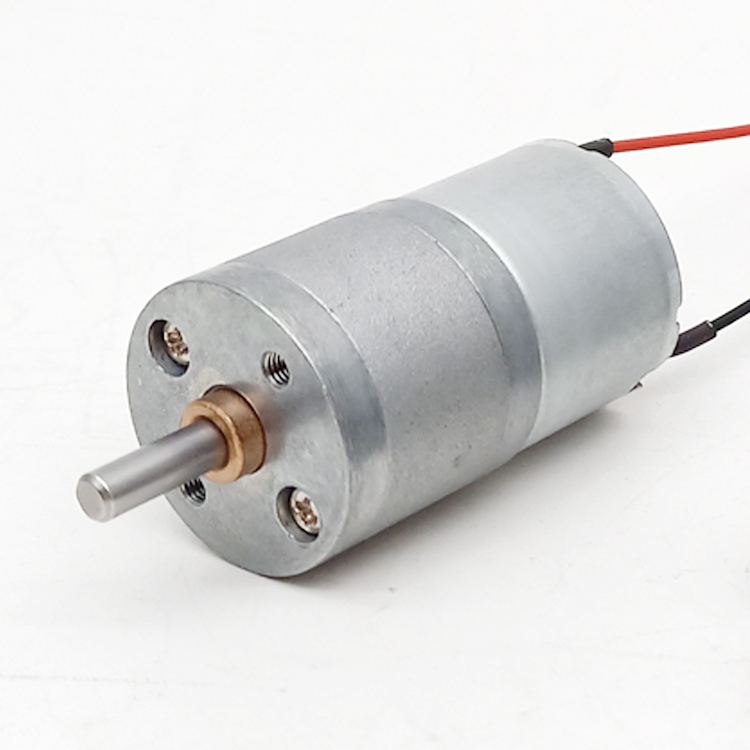

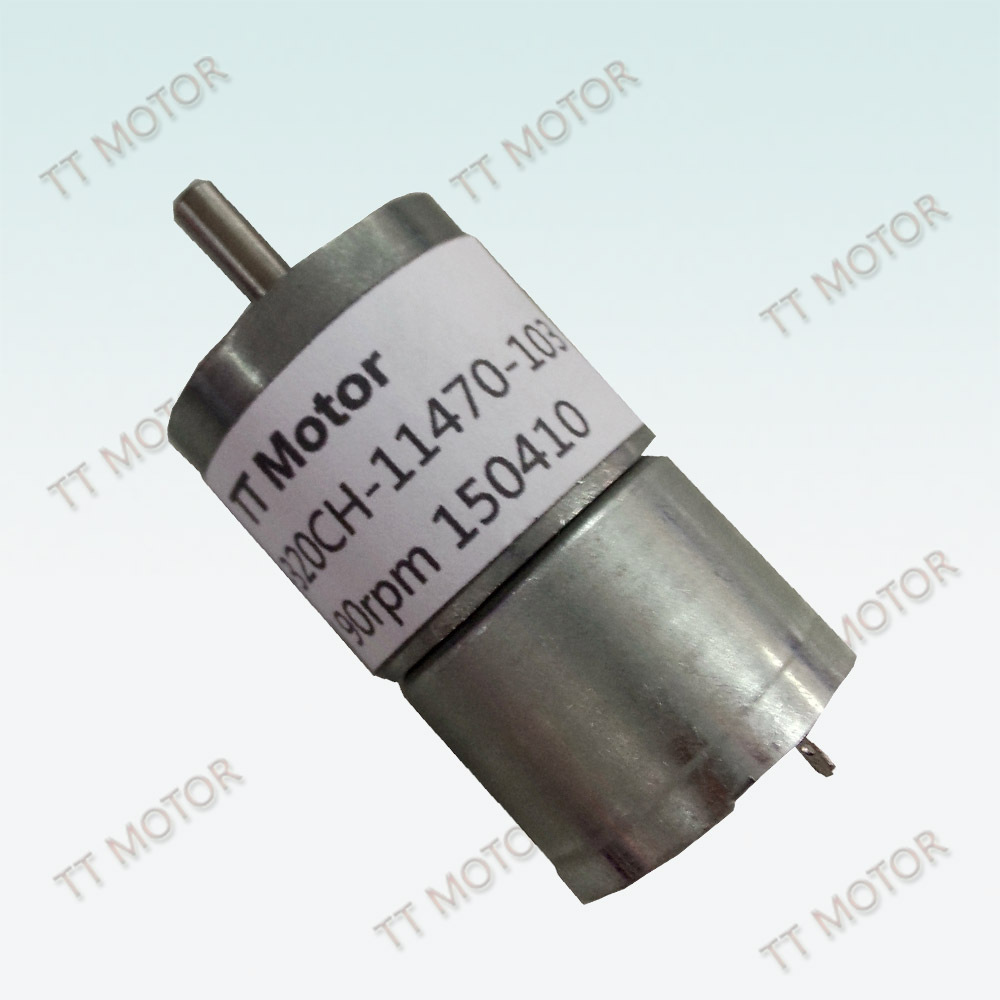

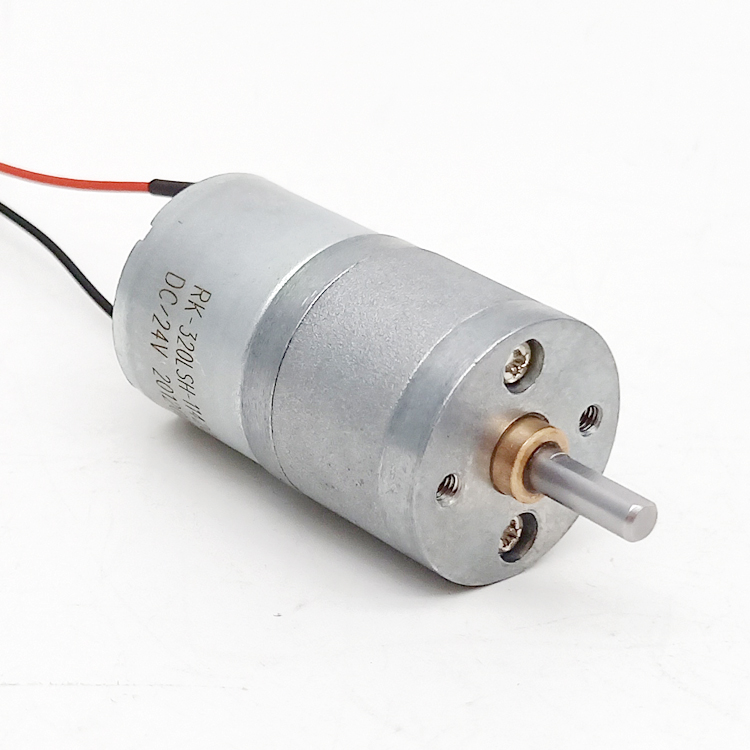

Motor Picture

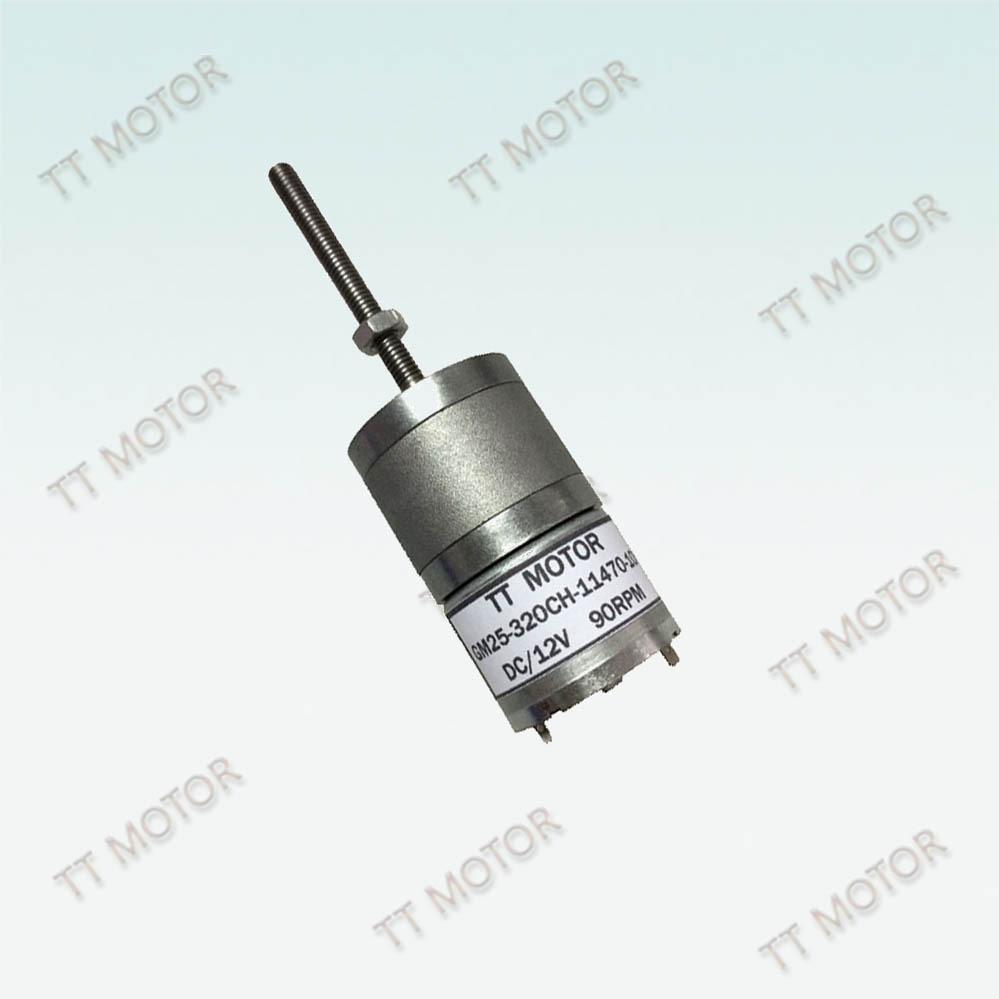

Motor with screw shaft and pinion

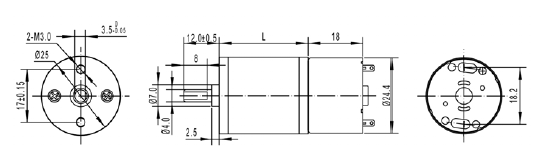

Motor Dimensions

Frequently Asked Questions

What is the voltage range for the GM25-320CH gear motor?

The motor operates within a voltage range of 4V to 12V, making it suitable for various low-power applications.

What are the main applications of this 25mm slow rotating motor?

This mini motor is widely used in robots, power locks, electronic locks, optical equipment, micro mechanisms, and money detectors.

Can I get samples before committing to a larger order?

Yes, samples can be provided for your testing. The delivery time for samples is approximately 15 days.

Is the rotating speed customizable for specific projects?

Yes, the rotating speed is constant but can be customized and manufactured according to your specific requirements.

What is the lifespan and noise level of the motor?

The motor offers a lifetime of up to 1000 hours, featuring low noise, low current consumption, and spark-free performance.

Does this model support encoder signal feedback?

Yes, this motor configuration includes an integrated encoder that provides a 16-pulse signal feedback for precise control.
