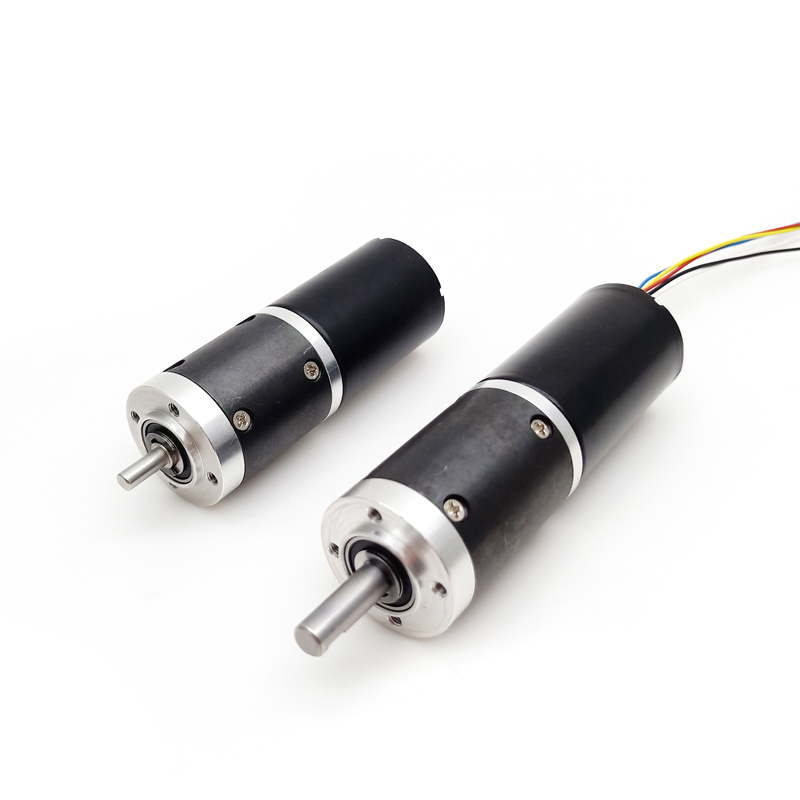

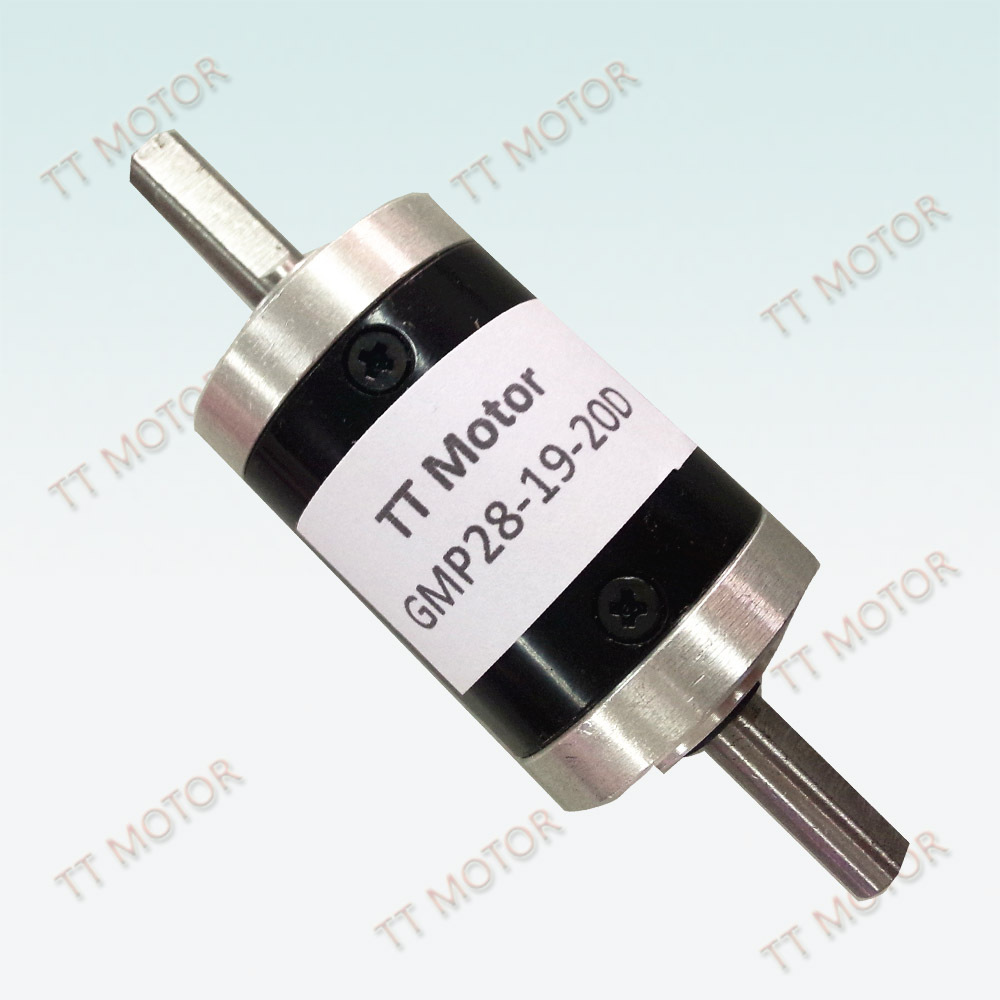

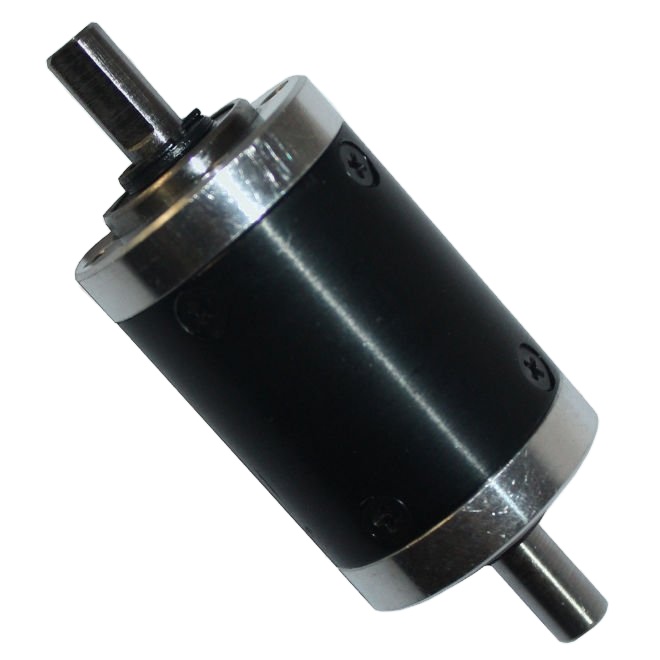

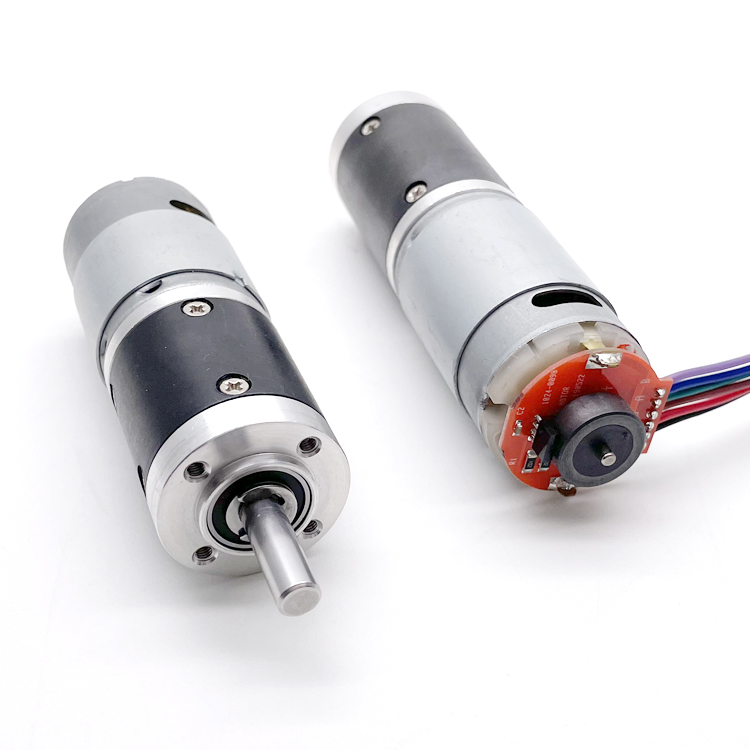

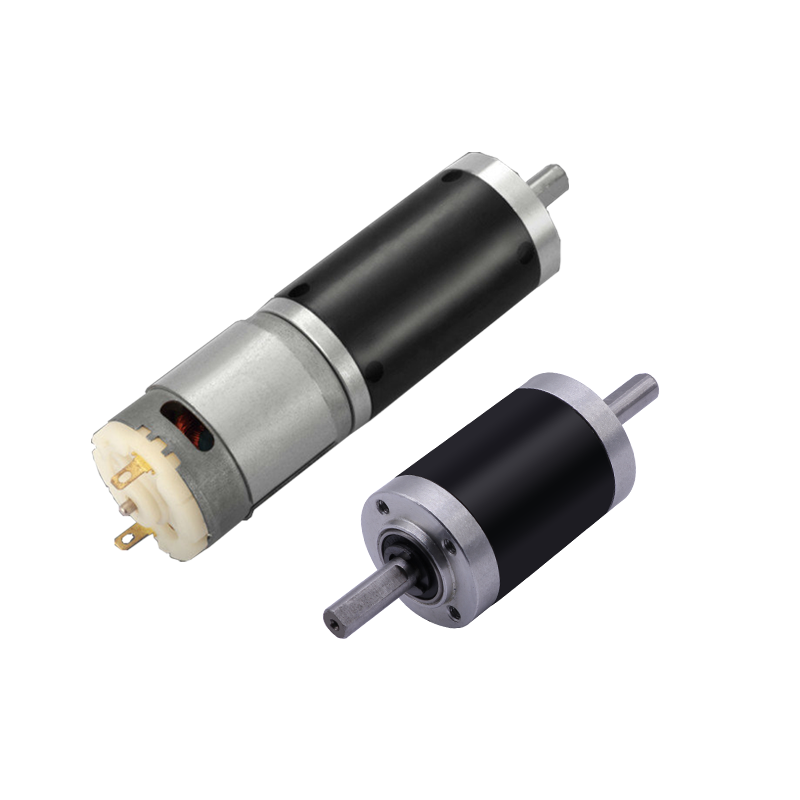

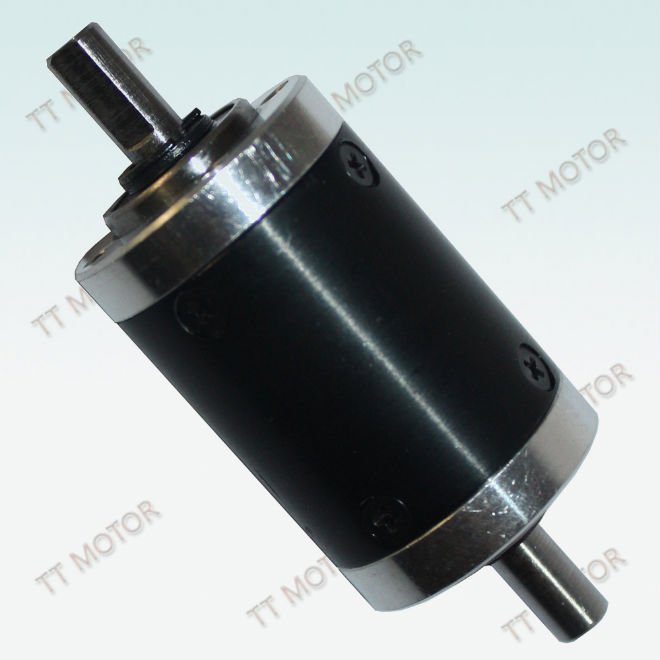

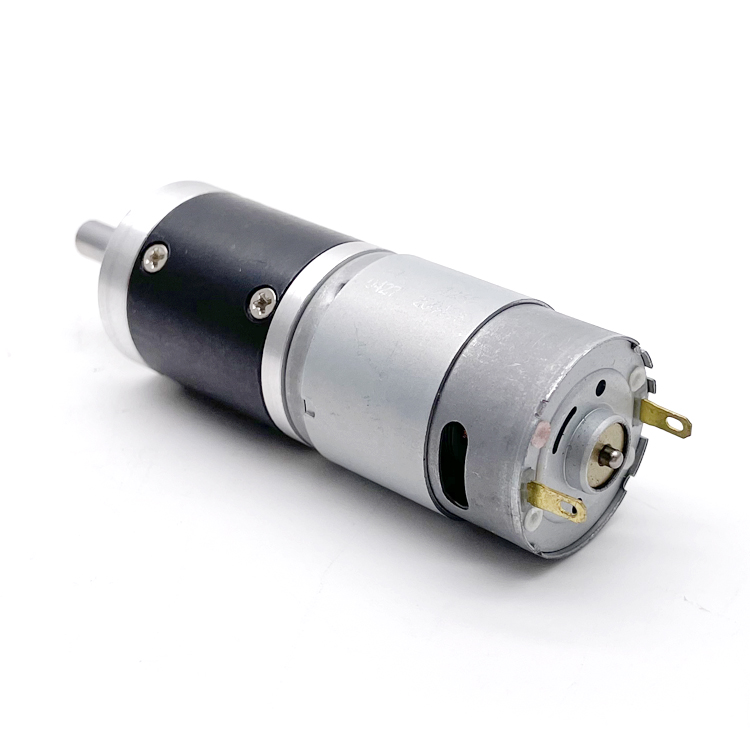

28mm Mini Planetary Gearbox - GMP28
High-Performance 6-24V Micro Gear Motor
Motor Overview: The GMP28 from TT Motor is a high-performance 28mm gear motor designed for precision applications. Both planetary and spur gearbox configurations are available to meet your specific torque and speed requirements.
Applications: Automatic curtain machines, medical equipment, rotary machines, and advertising lights.
Physical Dimensions: 28.0mm diameter * 80.0mm length.
Reduction Ratios: 1/3.7, 1/5.2, 1/19, 1/27, 1/51, 1/71, 1/100, 1/139, 1/189, 1/264, 1/369, 1/516, 1/720.
Service: Sample orders available. Standard delivery time is 15-20 days.

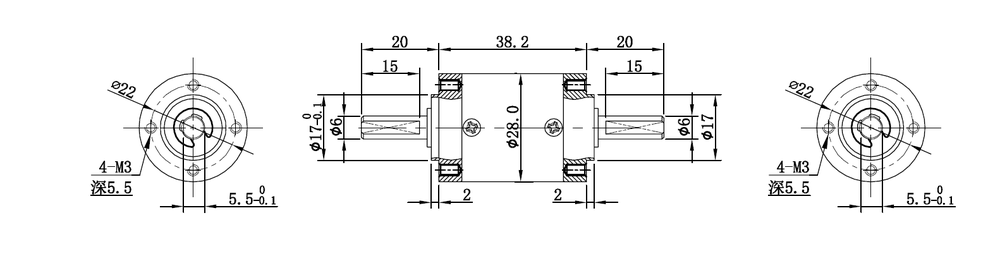

Parameters and Dimensions
Frequently Asked Questions
1. What is the operating voltage range for the GMP28 motor?
The GMP28 motor is designed to operate within a voltage range of 6V to 24V.
2. Are there different types of gearboxes available?
Yes, we offer both planetary gearboxes and spur gearboxes for this model to suit different mechanical needs.
3. Can I request a sample before placing a bulk order?
Absolutely, we support sample orders so you can test the product performance before committing to a larger production run.
4. What is the typical lead time for delivery?
The standard delivery time for the GMP28 series is 15-20 days, depending on order volume and configuration.
5. What are the common applications for this 28mm motor?
This motor is widely used in automatic curtain systems, medical devices, rotary advertising displays, and other small-scale industrial equipment.
