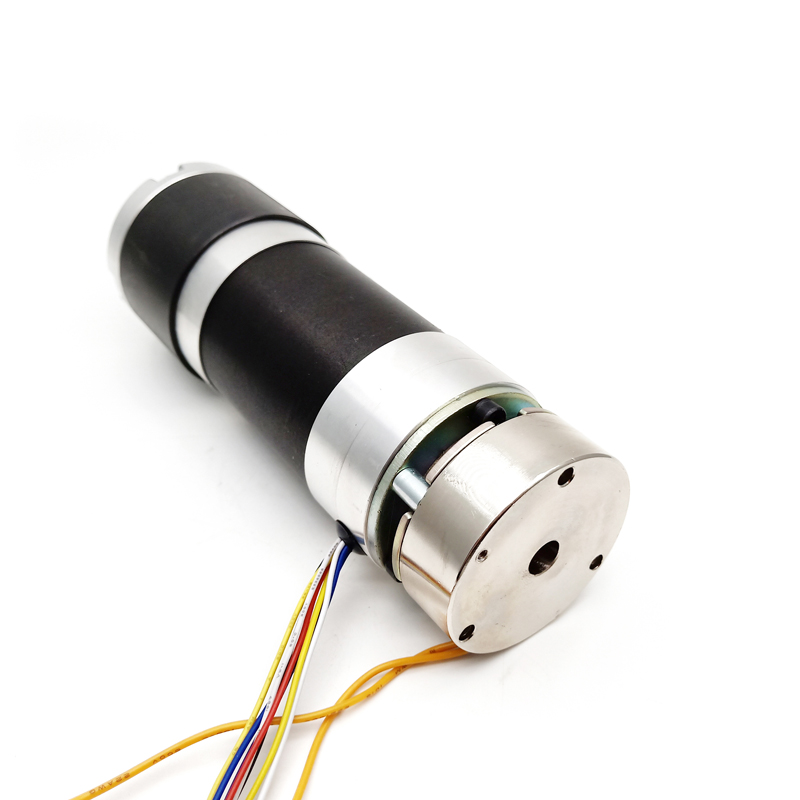

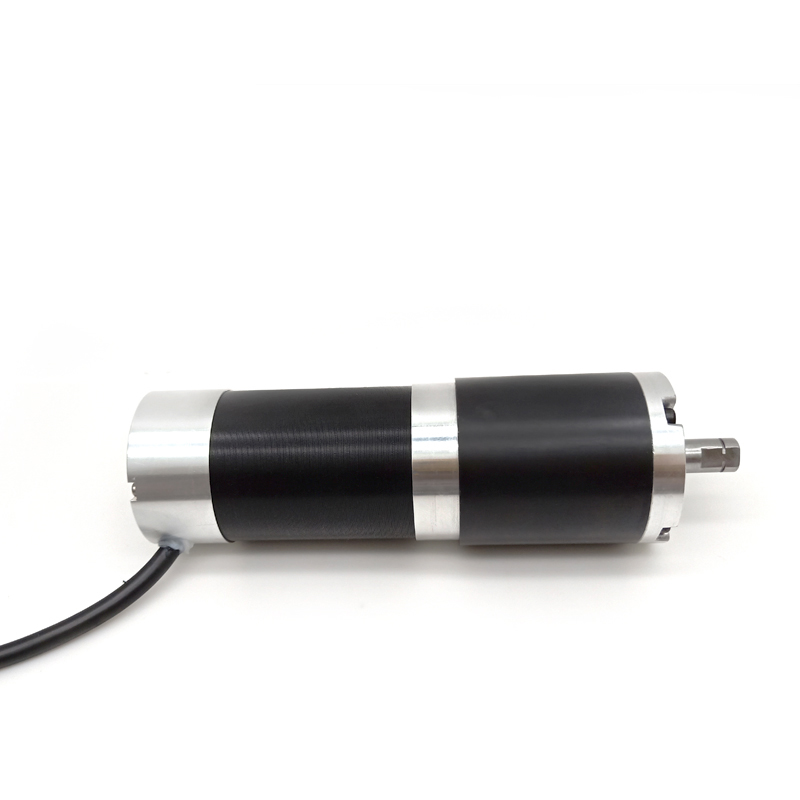

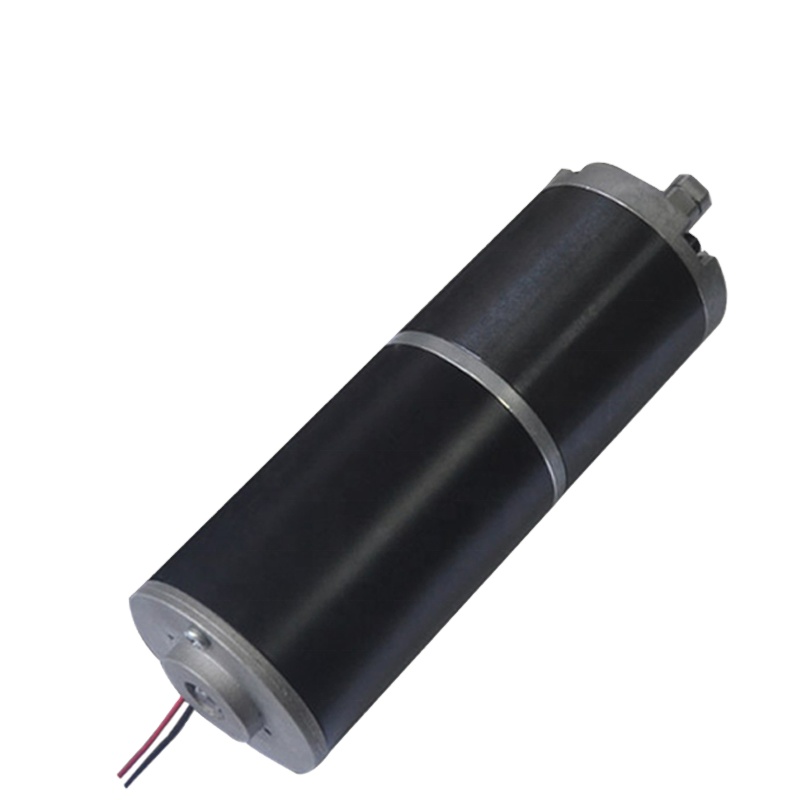

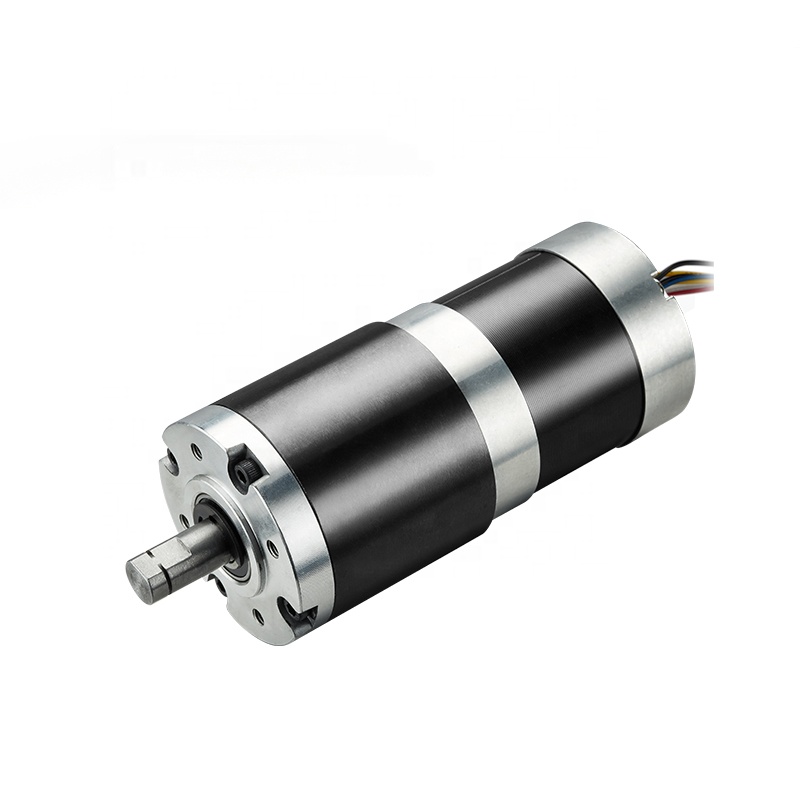

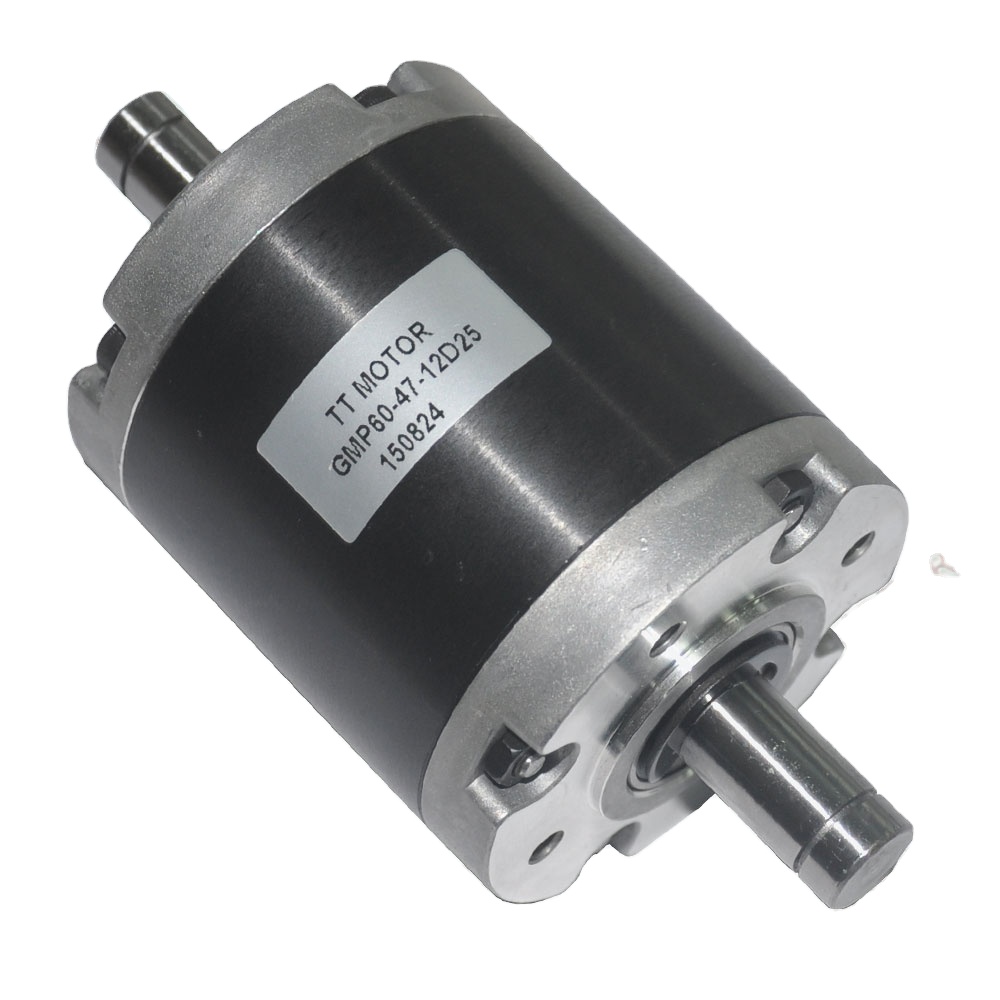

Ratio 4:1 Reduction Planetary Gear Box with Dual Shaft

Send Inquiry

Product Description

GMP60

6-24v 60mm gear motor with excellent performance

Motor with planetary gearbox, spur gearbox all available

Key Specifications & Features

Automatic curtain machines
Medical equipment
Rotary machine, advertising lights, etc.
Size: 60.0*65.2mm, 65.2mm length micro motor
Reduction Ratio: 1/4, 1/13, 1/15, 1/19, 1/47, 1/55, 1/65, 1/77, 1/168, 1/198, 1/234, 1/276, 1/326
Samples available for evaluation, delivery time: 15-20 days
Can be equipped with motor if necessary

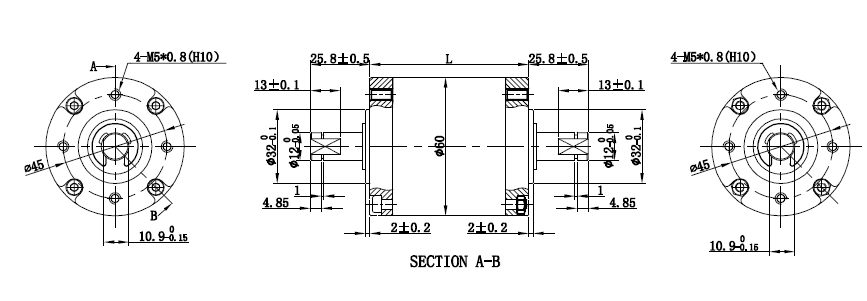

Parameters & Dimensions of Ratio 5:1 Reduction Planetary Gear Box with Dual Shaft

Product Gallery

Frequently Asked Questions

FAQ

What are the main applications of the GMP60 gear motor?

The GMP60 gear motor is ideal for automatic curtain machines, medical equipment, rotary machines, and advertising lights, among other applications.

What are the dimensions of this micro motor?

The micro motor features a diameter of 60.0mm and a length of 65.2mm.

What reduction ratios are available for selection?

The reduction ratios include 1/4, 1/13, 1/15, 1/19, 1/47, 1/55, 1/65, 1/77, 1/168, 1/198, 1/234, 1/276, and 1/326.

What is the operating voltage range for this gear motor?

This planetary gear motor is designed to operate within a range of 6V to 24V for optimal performance.

Can I get samples before purchasing, and what is the delivery lead time?

Yes, sample orders can be sent first for testing. The standard delivery lead time is approximately 15-20 days.

Is the gearbox provided with the motor?

Yes, the system can be fully equipped with a motor if your application requires it.
